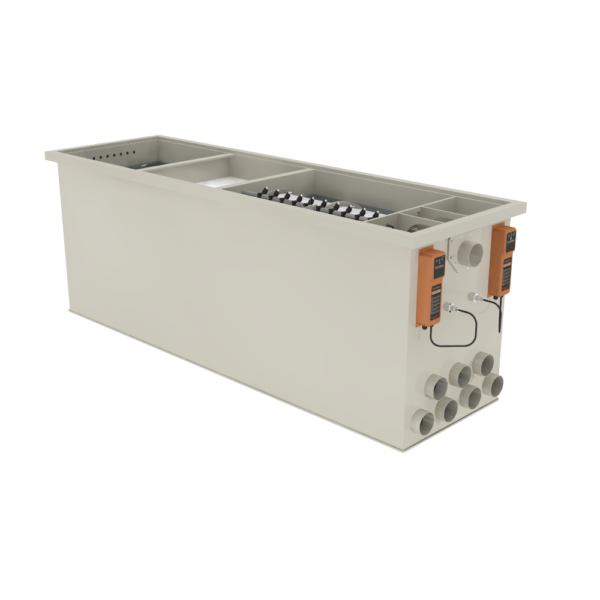

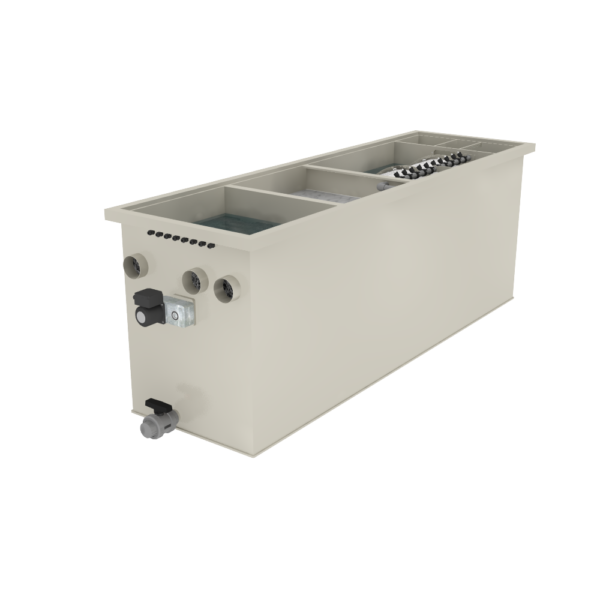

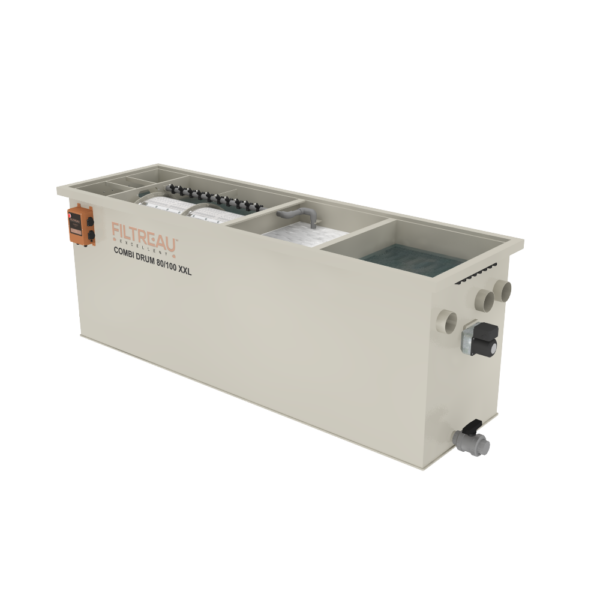

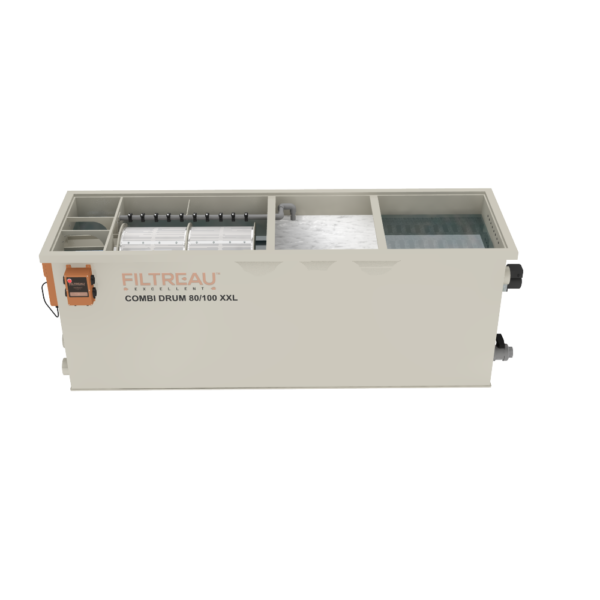

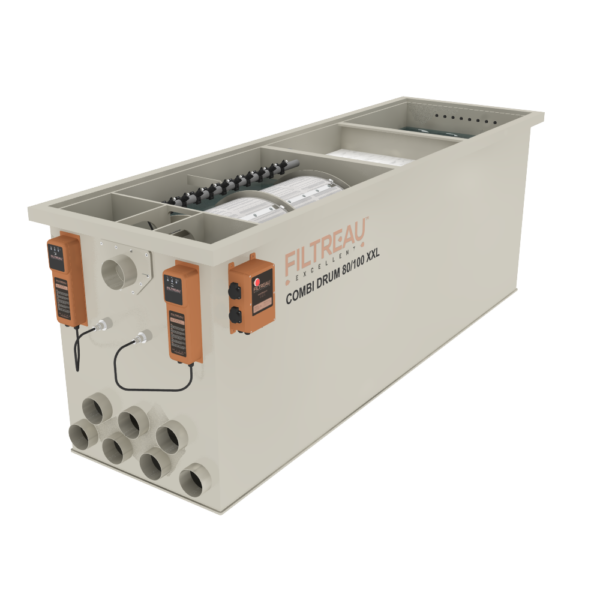

COMBI DRUM 80/100XXL - In Line Model

COMBI DRUM 80/100XXL - In Line Model

Rs 2,000,000.00 LKR
Rs 2,000,000.00 LKR
Sale Sold out
Filter Installation
SKU: 31

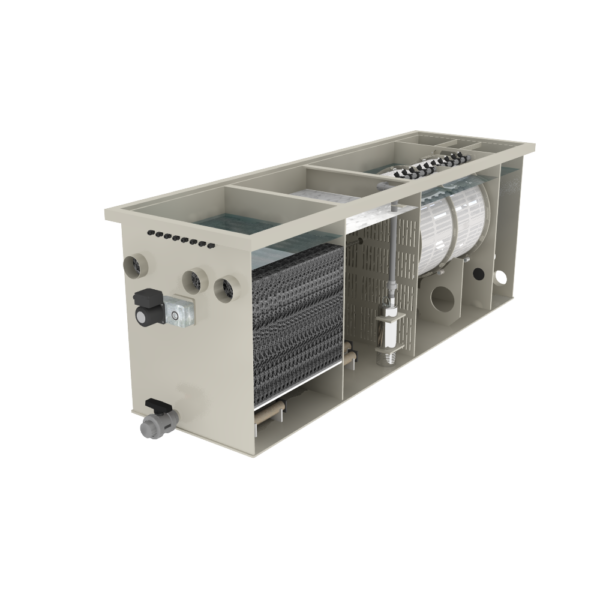

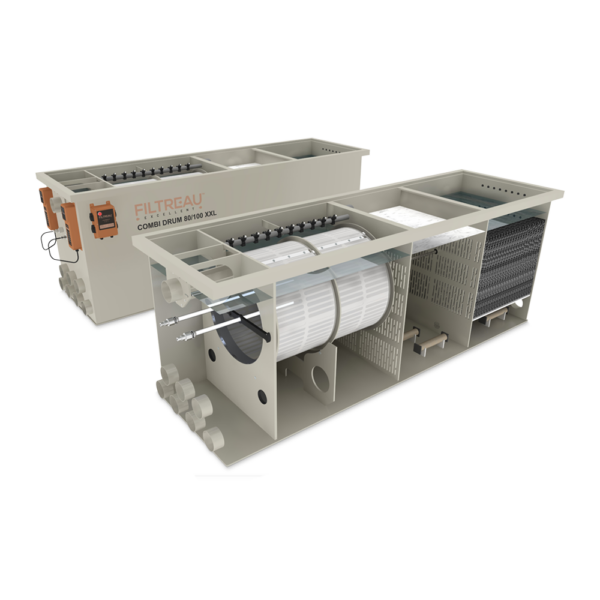

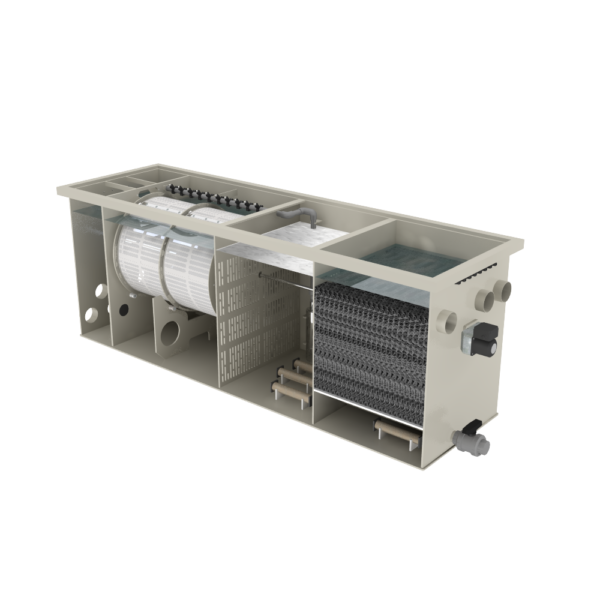

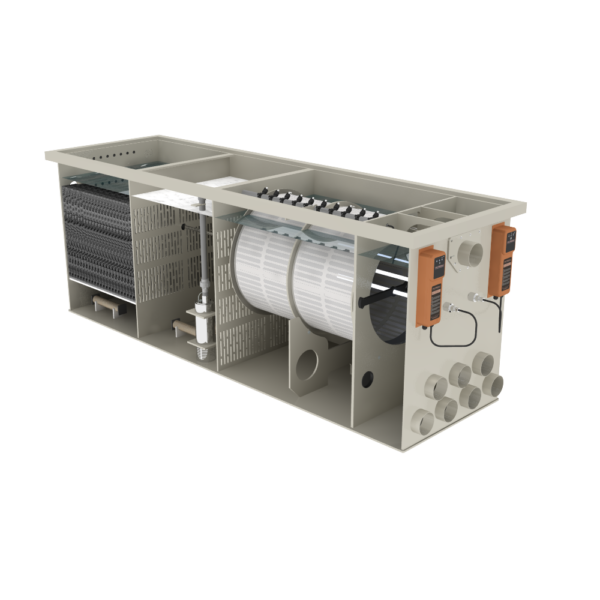

A combined Drum Filter and Biological Filter
(Filter Media shown in pictures is not included)

PLEASE NOTE - INLINE MODELS HAVE SMALLER BIOLOGICAL FILTER CHAMBERS

Technical Specifications
Maximum Flow Rate Gravity Fed - WMC34ILG 100,000 Litres Per Hour (LPH)
Maximum Flow Rate Pump Fed - WMC34ILP 70,000 Litres Per Hour (LPH)
Drum Motor SPG XL 130Nm 60W / 220V
Pressure Pump RVS 7 Bar / 900W 220V
Ultraviolet Clarifiers 1 x 80W (HO) UV-C Lights
Water Inlets 7 x 110mm
Water Outlets 3 x 110mm
Drum Ø 650 x 800mm
Air supply 4 x 50 x 300mm
Length x Width x Height 2900 x 850 x 1005 (mm)

Control Box
Centralised control of the entire COMBI DRUM 80/100XXL

SPG XL Drive Motor
Our industrial SPG drive motor delivers 130Nm of torque. These drive motors are constructed exclusively for our drum filters! The motors are mounted on the filter with a double seal to prevent both leakage and deformation.

UV-C High Output 80W Light
The new immersion Filtreau UV-C Module UNOX Stainless Steel, is designed with high-quality material, with a wavelength of exactly 253.7 UVC.


Nishikigoi LK, offers the service of building new ponds, alterations to existing ponds and adding a filter systems to existing ponds. We also provide you with an installing service at an additional cost and depending on location.

(BUTTON TO DIRECT THE CUSTOMER TO POND BUILDING)
