FILTREAU BASIC LINE - DRUM FILTER 50XL
FILTREAU BASIC LINE - DRUM FILTER 50XL
Regular price
Rs 1,050,000.00 LKR
Regular price
Sale price
Rs 1,050,000.00 LKR
Quantity
Couldn't load pickup availability

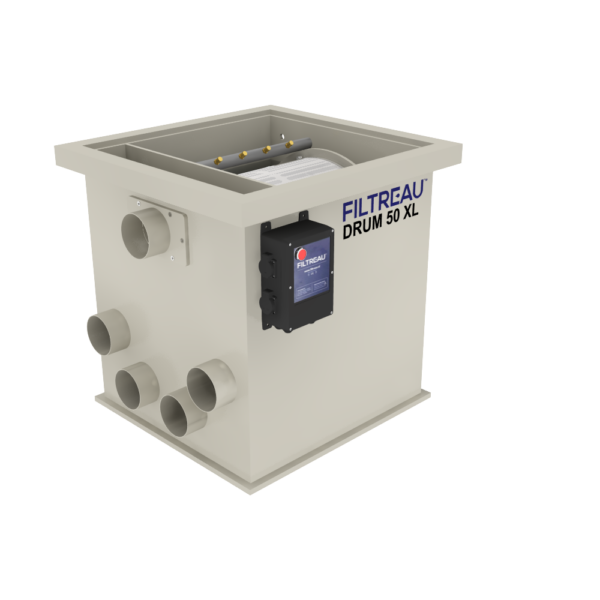

FILTREAU BASIC LINE - DRUM FILTER 50XL
DRUM FILTER ONLY
| Model | 50XL |
| Model No. - Gravity Fed | TR00013 |
| Model No. - Pump Fed | TR00014 |
| Capacity - Gravity Fed | 40,000 Lph |
| Capacity - Pump Fed | 30,000 Lph |
| Inlets | 4 x 110 mm |
| Outlets | 3 x 110 mm |
| Length x Width x Height | 710 x 790 x 790 mm |
| Drum Size - Diameter x Width | Ø 520 x 420 mm |
| Gear Box Motor* | 130Nm /60 watt 220 Volt * |
| Pressure / Rince Pump | Internal |
| Built In UV C - Light | 2 x 40 W Amalgaam |
Control Box Included
* SPG XL Drive Motor
Our industrial SPG drive motor delivers 130Nm. The unit for torque (force x arm) is Newton meters. It is used to denote, among other things, the tractive force of a motor. These drive motors are constructed exclusively for our drum filters! The motors are mounted on the filter with a double seal to prevent both leakage and deformation.
