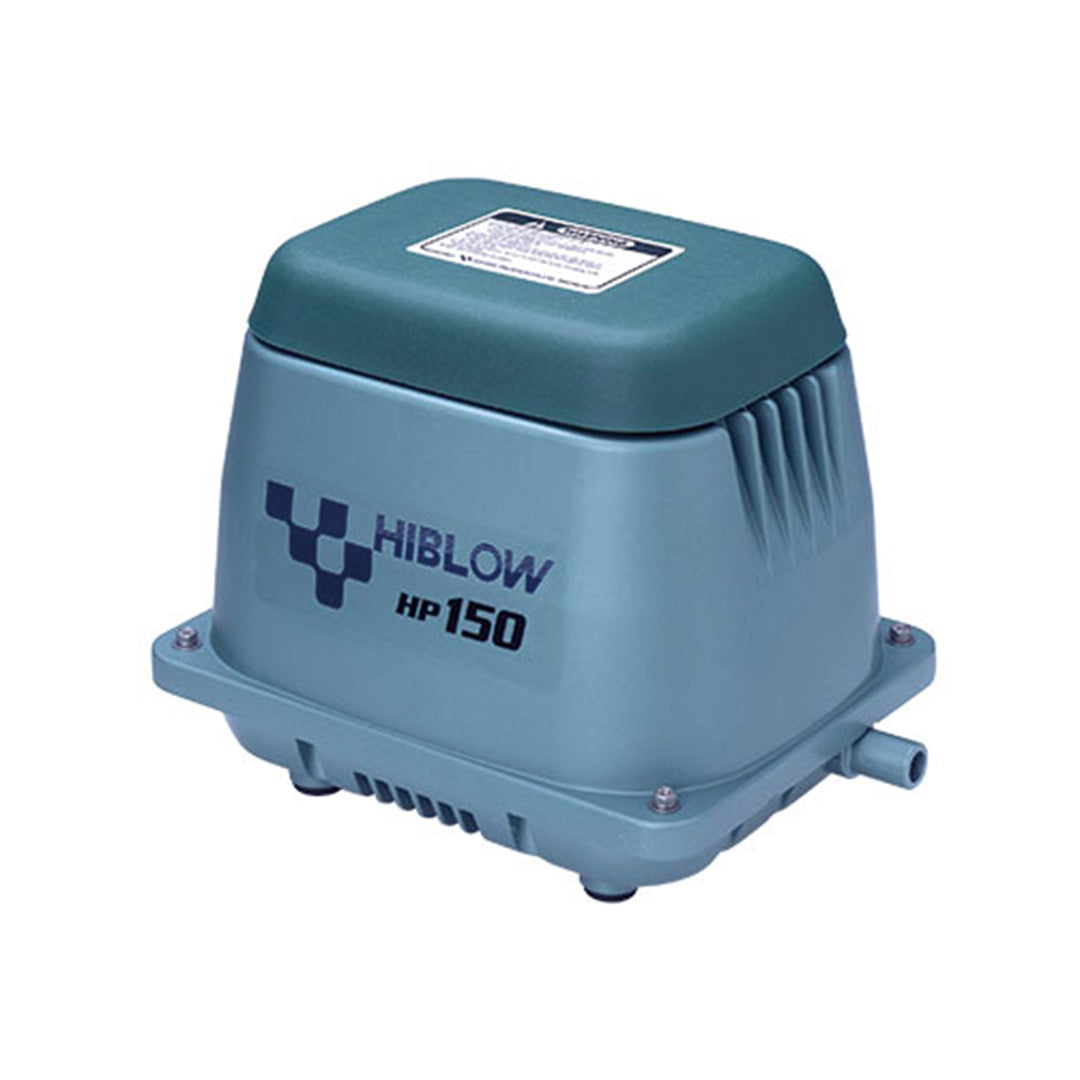

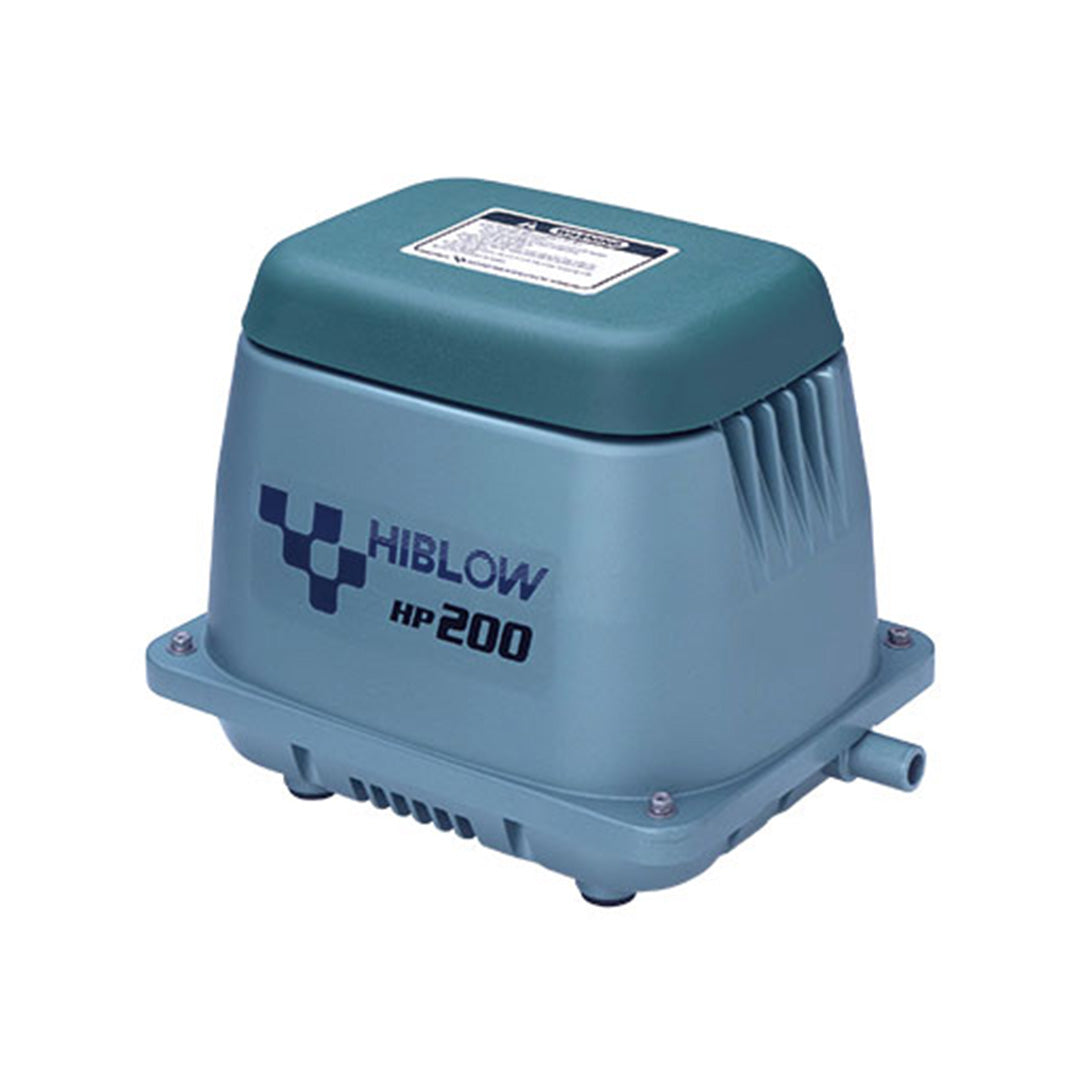

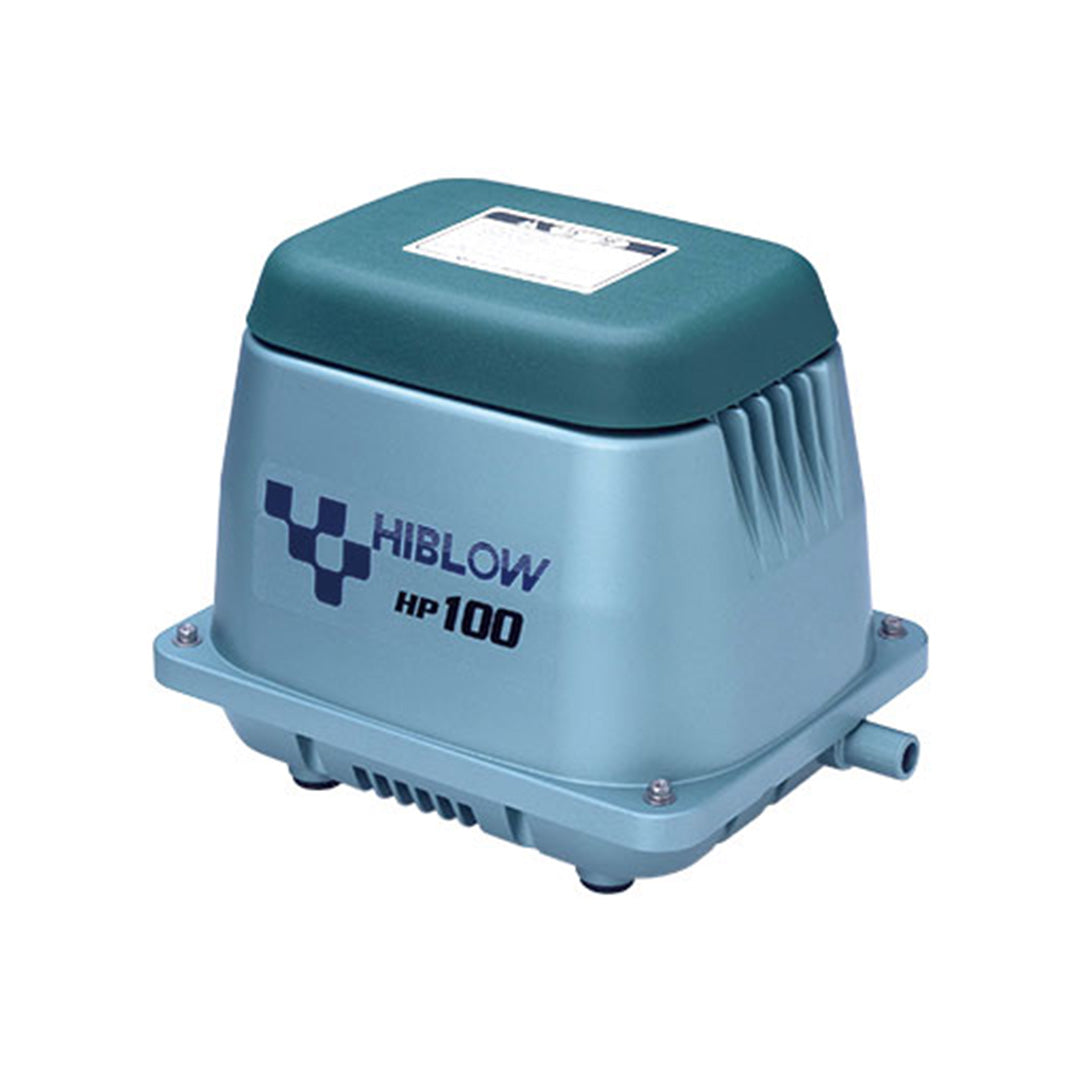

HIBLOW HP-100 / HP-120 / HP-150 / HP-200

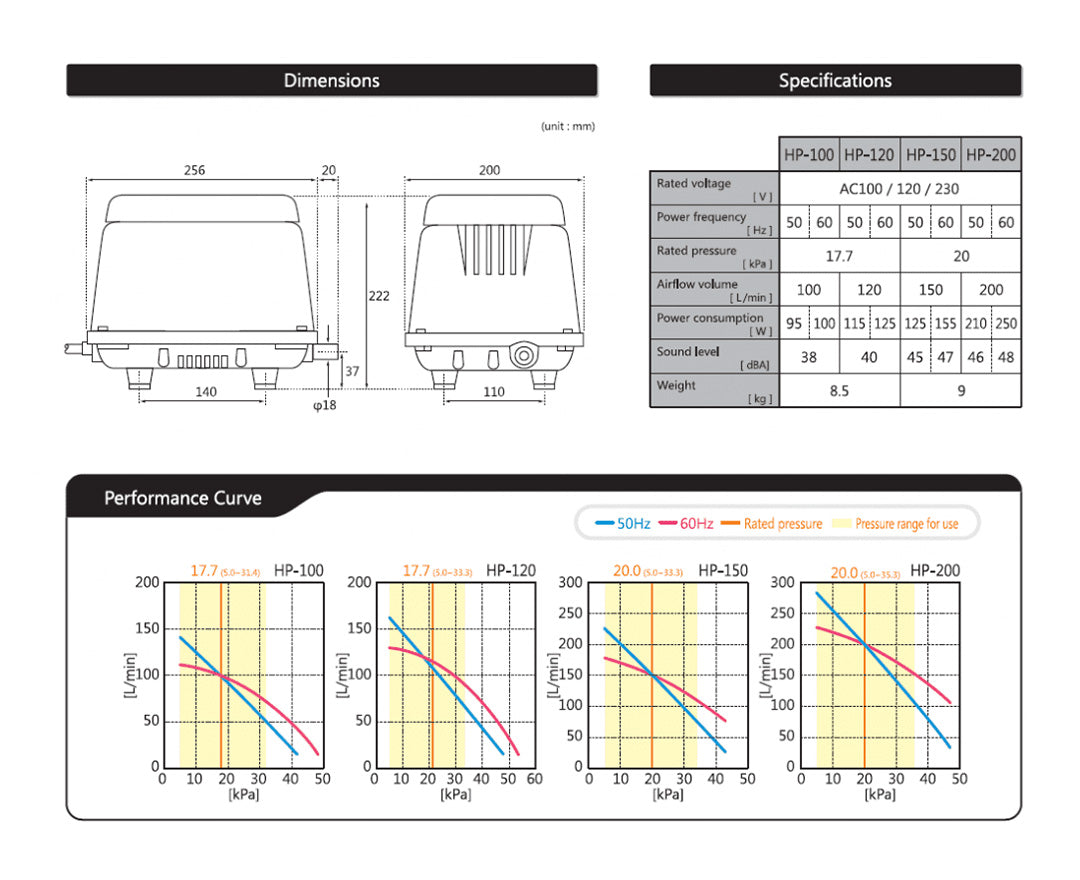

HIBLOW	HP-100	HP-120	HP-150	HP-200
Rated Pressure (kPa)	17.7 kPA	17.7 kPA	20 kPA	20 kPA
Rated Airflow (L/Min)	100 L/min @ 6.0' ft	120 L/min @ 6.0' ft	150 L/min @ 7.0' ft	200 L/min @ 7.0' ft
Airflow (L/Min) @ 3' ft	140 L/min	150 L/min	210 L/min	260 L/min
Power Consumption	95 W	115 W	125 W	210 W
Operating Sound Level (dBA)	38 dBA	50 dBA	45 dBA	46 dBA

IMPORTANT

The Air Intake Filter must be cleaned regularly. Failure to do so will result in low air output, rubber diaphragms needing premature replacement, higher energy consumption or the magnet coil failing. The frequency of cleaning or replacing the air filter, depends entirely on the pump working environment and the airborne particle content - dust
